Fairing heat damage rarely begins as a dramatic melted hole. It often starts with a small gloss change, a lifted adhesive edge, a distorted lower panel or a mark that returns after every ride. Replacing the visible panel without finding the hot zone can repeat the same damage on the new bodywork.
This guide explains how to document the affected area, distinguish useful evidence from guesswork, and prepare a clear enquiry before ordering replacement fairings or thermal material. It does not provide a universal heat-shield layout. Exhaust routing, clearances, shields and panel construction vary by motorcycle, model year and modification history.
What Heat Damage Can Look Like
Inspect only after the motorcycle has cooled. Compare both the outer finish and the inner face when the panel is accessible through the correct removal procedure. Useful visible evidence includes:
- a local change from gloss to dull or cloudy finish;
- yellowing, darkening or a color shift near a hot component;
- blistered paint, lifted decal edges or softened adhesive;
- a panel that has bowed, curled or no longer follows its earlier seam;
- a heat barrier that is torn, contaminated, detached or displaced;
- repeated contact marks between the inner panel and another component.
None of these clues identifies the cause by itself. Similar marks can come from chemicals, abrasion, prior repair or incorrect storage. Record the position and surrounding assembly before deciding that heat is responsible.

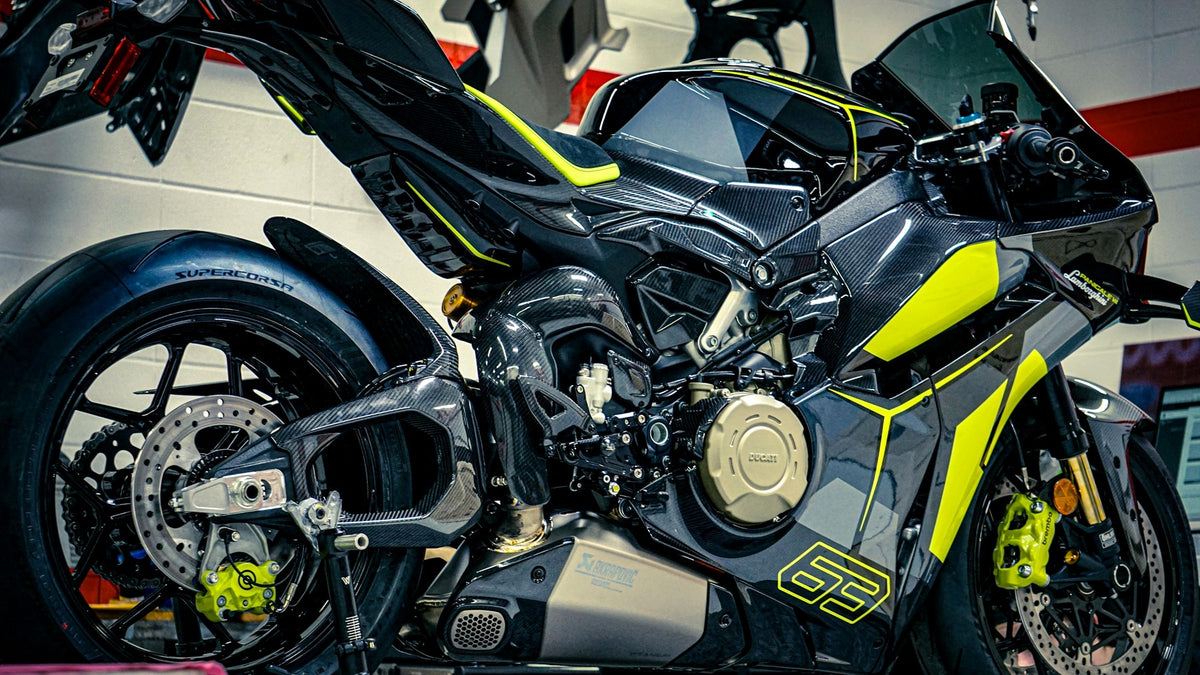

Build a Hot-Zone Map Before Removing Parts

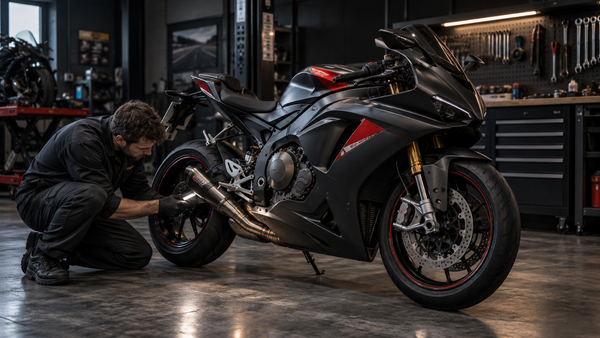

Start with a full side photograph of the motorcycle. Add a second image from a lower angle so the belly pan, side panel and exhaust relationship are visible. Then take close photographs of the damaged area with one wider image showing where it sits on the bike.
Mark the photographs rather than the motorcycle. Record left or right side, the panel name if known, the distance and direction from a visible reference point, and whether the mark appeared after a modification or service event. This turns "the fairing melted" into a location another person can understand.
Photograph the opposite side as a comparison even if it looks normal. The comparison can reveal differences in shield placement, routing or panel position. Do not assume both sides should be identical; use the comparison to formulate questions, not to prove a fault.
Record recent changes
List anything that changed before the damage appeared: exhaust work, replacement headers, a different lower fairing, repaired brackets, missing inner trim, new fasteners, changed routing, or removal of old adhesive material. Include work you did not perform personally. Modification history often matters more than the brand name on the visible panel.
Also record the conditions under which the change becomes noticeable. A mark that develops only after extended low-speed traffic creates a different enquiry from one found immediately after installation. Avoid claiming a temperature unless it was measured correctly with suitable equipment and a documented method.
Inspect the Panel as Evidence
When the service procedure allows removal, support the panel on a clean padded surface. Photograph the outer face, inner face, mounting points and any thermal material before peeling or cleaning anything. Include an object of known size in close views, but keep it away from hot or contaminated surfaces.
Look for the boundary of the change. A concentrated area can help define the enquiry, while broad discoloration may require a different inspection. Check whether the inner and outer marks correspond. Do not scrape, sand or heat the area to test it; those actions destroy evidence and can enlarge the damage.
Mounting points and panel position
A panel held out of its intended position can lose clearance. Inspect tabs, brackets, grommets, well nuts, spacers and fasteners against the correct application information. A wrong bolt or missing spacer can matter even when the painted surface looks aligned.
Never force-screw misaligned holes. Pulling a panel into place with a fastener leaves the plastic under static tension and may also change the space around a hot component. Resolve alignment before final tightening. The fairing pre-fit checklist explains how to compare holes, tabs and adjoining panels without using bolt force as an alignment tool.
Heat Barriers Are Application-Specific Parts
Reflective film, formed shields, insulating layers, air gaps and attachment methods are not interchangeable just because they are all described as heat protection. The correct arrangement depends on the motorcycle and the surrounding components. Retain original material until its role and replacement are understood.
Do not copy the shape of a shield from an unrelated motorcycle. Do not cover drain openings, ventilation paths, fastener seats or inspection points. Do not place material where it can detach onto an exhaust or interfere with service. Follow the documented product and motorcycle requirements or use a qualified installer.
Why more material is not automatically better
An extra layer can change thickness, panel seating and adhesive behavior. It may trap contamination, bridge an intended air gap or conceal an underlying clearance problem. The useful goal is the correct thermal arrangement, not the largest possible sheet of reflective material.
Household foil, general-purpose tape and random foam are poor substitutes because their adhesive, temperature behavior and fire properties may be unknown. A shiny surface alone does not establish suitability. Ask for a product intended for the application and install it according to its instructions.
Separate Three Questions
A productive diagnosis separates the panel, the thermal protection and the motorcycle configuration.
- Is the panel the correct application and securely positioned? Confirm model, year group, supplied pieces and retained brackets rather than judging from color or general shape.
- Is the required thermal protection present and correctly attached? Compare with reliable information for the actual assembly.
- Has the heat source or surrounding layout changed? Exhaust modifications, displaced brackets and prior repairs can alter the relationship even when each visible item seems intact.
Answering only one question can produce an expensive loop. A new panel cannot correct a missing shield. New thermal material cannot correct a panel pulled inward by the wrong spacer. Correct panel alignment cannot compensate for an exhaust component installed outside its intended position.
When the Panel Should Leave Service
Stop using the affected bodywork when it is distorted enough to reduce secure attachment or clearance, when a crack reaches a mounting point, when a shield can detach, or when the panel may contact the exhaust, tire, chain or another moving part. If the cause cannot be established, transport or professional inspection is the conservative choice.
Do not drill, slot or trim a panel to move it away from heat without model-specific justification. That can weaken an edge, remove finish protection and hide the real alignment problem. Likewise, do not use a fastener to drag a warped panel back into position.
If the motorcycle has an unusual smell, smoke, fluid leak, electrical issue or abnormal exhaust condition, the problem is no longer a cosmetic fairing question. Stop operating it and obtain appropriate mechanical assessment.
Prepare a Clear Supplier or Workshop Enquiry
A concise evidence package gets a better answer than a single close-up. Include:
- motorcycle make, model, model year and market;
- whether the fairing, exhaust or brackets are original, replacement or modified;
- one full-bike side view and one lower three-quarter view;
- outer and inner close-ups of the affected panel;
- photographs of the mounting points and existing thermal material;
- the date and riding conditions when the change was first noticed;
- a list of recent service or modifications;
- the exact question: replacement panel, shield scope, clearance check or installation review.
Keep observed facts separate from conclusions. "The inner surface is darkened 40 mm behind this mounting hole" is more useful than "the plastic is defective." If the seller cannot identify the exact configuration from photographs, ask what additional reference is needed.
Plan the Replacement Before Ordering
Decide whether the project involves one damaged panel, adjoining bodywork, retained inner pieces, thermal material, hardware or professional installation. A panel listing may not include every item visible in an assembly. Use the actual product description and written confirmation.
Color is a separate decision. A new painted panel may not visually match an aged or previously refinished neighbor under every light. If the heat mark affects several adjoining pieces, compare the cost and visual risk of a local replacement with a larger coordinated scope. Do not let the paint decision distract from correcting the hot zone first.
Before installation, compare the old and new panels on a padded surface. Check outer shape, inner ribs, tabs, hole locations and the areas intended for retained components. Do not assume a visually similar panel belongs to the same year group.
Installation Controls That Protect the New Panel
Use the correct removal and installation information for the motorcycle. Transfer only components that are meant to be reused and remain serviceable. Keep every fastener loose enough for the assembly to find its natural position until all adjoining tabs and holes are correctly engaged.
Hand-start threaded fasteners. If a hole aligns only when the panel is pushed hard, stop and find the reason. Tightening through misalignment can preload ABS, distort the panel toward the heat source and create stress around the hole. Use the specified fastener procedure rather than a universal torque guess.
Confirm thermal material and required clearances before the final panel is closed. Take inner-face photographs of the completed work where access allows. These become the baseline if a mark appears later.
First Heat-Cycle Review
After the motorcycle has been returned to service through an appropriate process, make the first use controlled and brief. Allow it to cool fully before inspection. Compare the new photographs with the baseline, paying attention to edges, adhesive, panel shape and the previously affected zone.
Repeat the check after several ordinary rides. The absence of visible change does not prove every thermal condition is safe, but a documented baseline makes emerging changes easier to notice. Stop if damage returns rather than adding another layer of material over it.
Fairing Heat-Damage Checklist
- The motorcycle is cool and stable before inspection.
- Wide location views and detailed outer/inner photographs are saved.
- The exact model year, panel application and modification history are recorded.
- Mounting points, spacers, retained brackets and fasteners are identified.
- No fastener is being used to force misaligned holes together.
- Existing shields and adhesive remain documented before removal.
- No household or unverified thermal material is being substituted.
- Required exhaust and moving-part clearances are confirmed for the application.
- The replacement scope includes separately required shields, hardware or inner pieces.
- A post-installation baseline and first-heat-cycle review are planned.
Fix the Relationship, Not Only the Surface
A melted or distorted fairing is the visible end of a relationship between panel position, heat source, airflow, shielding, hardware and prior work. Treating only the paint or plastic leaves the rest of that relationship unchanged.
Map the hot zone, preserve the evidence, confirm the exact assembly and correct the cause before installing a replacement. That process is slower than ordering by appearance, but it gives the new bodywork a fair chance to stay secure and presentable.
