A new side fairing that touches the fuel tank or seat edge can turn a clean installation into a worn paint line after a few rides. The tempting fixes—tightening one screw harder, stuffing foam into the gap, or sanding the painted edge—often hide the real cause while leaving the ABS under tension.
Treat rubbing as an interface problem. The panel, grommet, collar, bracket, tank cover and seat all establish the final position. Your job is to find which relationship changed, correct the stack-up, and confirm clearance through the motorcycle’s normal movement. There is no universal gap dimension that fits every model, so use the factory service information for your exact motorcycle whenever mounts, tank position or torque are involved.
Stop the Contact Before Diagnosing It
If the rubbing is cutting paint, restricting seat operation, trapping wiring, or occurring near a hot or moving component, stop riding until it is inspected. Wash the area gently and dry it so grit does not create more damage while you work.
Protect vulnerable paint with clean, removable low-tack masking material approved for the finish. Do not place aggressive tape over fresh paint or decals without checking cure time and compatibility. The protective layer is only for diagnosis; it is not the final repair.
Photograph both sides of the motorcycle from the same angle. Then photograph the contact point, nearby fasteners and the back of the accessible panel. These reference images prevent you from forgetting the original position after loosening parts.
Decide Whether the Contact Is Static or Dynamic
Static contact is present while the motorcycle is parked and unloaded. Dynamic contact appears only when you sit on the motorcycle, latch the seat, turn the bars, warm the bike, or ride over bumps. The distinction narrows the search.
Slide a clean strip of plain paper through the suspect seam without forcing it. Resistance can help map where the surfaces touch. A small piece of removable painter’s tape on the protected area can also reveal a witness mark. Never insert a hard tool between painted surfaces.
Check the interface in several safe conditions:
- Motorcycle upright and stable, with no rider aboard.
- Seat removed, then installed and fully latched.
- Handlebars centered, then moved slowly through their full range where relevant.
- Suspension loaded only with a helper and the motorcycle securely supported.
- Engine cold first; heat-related checks require extra care around the exhaust and cooling system.
If contact appears only with the seat latched, inspect the seat position and latch interface before reshaping a side panel. If it appears after the fairing screw is tightened, suspect a missing collar, incorrect fastener, displaced grommet or a hole being pulled into alignment.

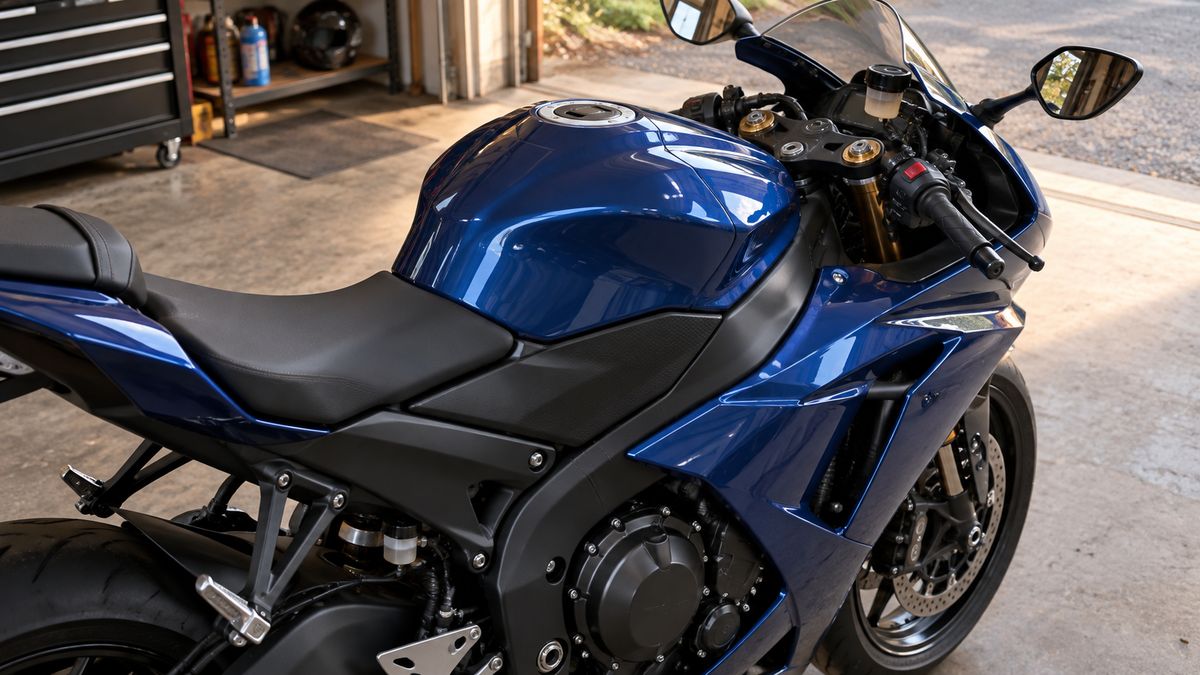

Editorial illustration: support the panel in its natural position while checking the correct grommet, collar and fastener stack.
Read the Witness Mark
The shape and location of the mark are useful.
| Symptom | Likely interface to inspect | Follow-up |
|---|---|---|
| Thin polished line along the tank edge | Side panel sitting high, tank trim displaced, missing edge protection or stored panel tension | Check upper mounts, grommets and correct panel overlap |
| Contact begins only after seat installation | Seat not fully latched, seat bumper misplaced, tail panel position or wrong overlap sequence | Verify latch operation and compare both sides |
| Gap closes when one bolt is tightened | Incorrect collar or fastener, tab outside its intended slot, bracket position | Loosen the assembly and confirm the hardware stack |
| One side touches while the other has clearance | Missing rubber support, asymmetric bracket, previous repair or installation sequence | Compare parts and mounting points side by side |
| Mark appears after a warm ride | Thermal movement, exhaust heat, panel preload or insufficient hot clearance | Inspect heat shielding and nearby mounting tension when fully cooled |
| Seat edge scuffs the tail during removal | Seat insertion angle, latch position or tail panel installed too far inward | Review the model-specific seat removal and panel sequence |
A witness mark tells you where motion happens; it does not automatically tell you which component is wrong. Work outward from the contact point to the nearest locating features.
Check the Seat Before Moving the Bodywork
Confirm that the seat is the correct part for the motorcycle and that its front tangs, rear hooks and latch engage normally. A seat resting on top of a guide instead of inside it can push outward on a tail panel or downward onto a side trim.
Inspect rubber bumpers and spacers. Missing bumpers can lower the seat; incorrectly placed ones can hold it high. Do not alter the latch or remove supports to create a cosmetic gap. The seat must remain secure and function as designed.
Watch the panel while a helper gently installs and latches the seat. If the fairing moves at the moment the latch closes, find the transfer point. The seat may be contacting the wrong face of the trim, or the tail section may already be pulled inward by another fastener.
Verify Grommets, Collars and Fastener Length
Many painted panels are positioned by more than a screw. A rubber grommet centers a tab, a metal or plastic collar controls compression, and a shoulder fastener may limit how far the panel can be clamped. Leave out one piece and tightening the bolt can move the fairing several millimeters or crush the mount.
Lay the removed hardware in installation order and compare left with right. Check the parts diagram and service manual for the exact model and year. Similar-looking bolts may have different shoulder lengths. A longer bolt can bottom out; a shorter one may pull directly on paint or ABS instead of the collar.
Replace hardened, torn or swollen rubber mounts with the correct specification. Universal hardware is useful only when its dimensions and function match. Our guide to reusing or replacing fairing fasteners explains what to record before ordering anything.
Let the Panel Find Its Natural Position
Never use a bolt to drag a misaligned hole into place. ABS held under static tension can develop stress whitening or crack around the tab as vibration and heat cycles accumulate.
Use a controlled dry-fit:
- Support the motorcycle securely and let painted parts cool.
- Remove only the pieces needed to access the interface, following the service sequence.
- Confirm every tab is on the correct side of its mating panel and every peg is seated in its grommet.
- Install the correct collars, washers and fasteners finger-tight.
- Gently settle the panels so their locating features carry the position.
- Check the tank, seat and adjacent seam before applying final torque.
- Tighten in the documented sequence and to the model-specific specification.
If a hole still needs force, stop. Loosen the neighboring mounts and inspect for a folded grommet, trapped wiring, wrong overlap or moved bracket. A hole-alignment issue is information, not an invitation to apply more leverage.
Inspect Brackets Without Bending Them to Fit
Upper side panels may locate on small metal stays or shared brackets. A previous tip-over, transport strap or earlier repair can shift a stay enough to create contact at the tank. Fresh paint on the new fairing does not correct the support beneath it.
Look for cracked paint on the bracket, distorted slots, mismatched left-to-right angles or evidence that a tab has been repaired. Do not bend a structural or welded support based on appearance alone. Compare with model-specific measurements or have a qualified technician inspect it.
The same logic applies near the front. If panel position affects cables, hoses, levers or the ignition area, complete a steering-clearance check at full lock before riding.
Do Not Use Soft Material to Conceal Stored Tension
A thin, model-appropriate anti-chafe pad can protect a designed contact point when the manufacturer specifies it. Random foam is different. It can hold moisture and grit, change panel position, interfere with seat latching or increase pressure at the very edge you are trying to protect.
Likewise, grinding or sanding a painted fairing should not be the first response to contact. Removing material may expose the finish, weaken an edge and make returns or warranty review difficult. Diagnose mounts and part identity first. If modification is genuinely required, document the condition and consult the supplier before altering the panel.
Confirm the Tank and Tank Cover Are Not Being Confused
On some motorcycles, the visible painted piece is a cosmetic tank cover over the actual fuel tank; on others, painted tank surfaces meet separate trim. The attachment method changes the diagnosis. Do not loosen fuel-system hardware because a cosmetic seam looks tight.
Identify the components in the parts diagram. If the actual fuel tank, fuel lines, vents or electrical connections must be disturbed, follow the service manual and use a qualified technician when the work is beyond your experience. Fuel-system safety is outside the scope of a cosmetic alignment adjustment.
Recheck the Whole Assembly
Correcting one contact point can move another seam. After final assembly, inspect the motorcycle as a system.
- Seat latches and releases normally.
- No fairing edge cuts into the tank, seat, wiring or hoses.
- All visible tabs are seated and fasteners use the correct hardware.
- Handlebars move freely through full lock with normal control operation.
- Lower panels maintain safe clearance from the exhaust and other hot parts.
- Nothing rattles when the bodywork is gently tapped by hand.
- Lights, signals and any disconnected electrical components function normally.
If a new sound appears, trace it before adding more fasteners. The motorcycle fairing rattle inspection guide covers contact marks, missing isolators and hardware errors that often accompany alignment problems.
Use a Short, Deliberate First Ride
Once the stationary checks pass, choose a short route close to home and avoid high speed. Stop immediately if the seat shifts, controls bind, a panel vibrates strongly, or you smell hot plastic. After the motorcycle cools completely, inspect the protected witness areas and check the fasteners according to the service guidance.
Heat can reveal contact that was absent in the garage. It can also make the engine and exhaust dangerous to touch, so wait for safe temperatures before reinspection. Never reach behind a lower fairing while the motorcycle is running.
Pre-Ride Interface Checklist
- The seat is fully latched and cannot be lifted unintentionally.
- The tank and bodywork have the model-appropriate clearance with no abrasive debris trapped between them.
- Correct grommets, collars, washers and fasteners are installed.
- No bolt was used to force a hole into alignment.
- Tabs show no fresh whitening, cracking or distortion.
- Steering reaches both stops without bodywork, lever, hose or wiring interference.
- Exhaust and hot-component clearances match the service information.
- All removed electrical connectors, lights and signals work.
- A cooled post-ride inspection is planned after the first short ride.
Fix the Position Before Protecting the Paint
The durable solution to a motorcycle fairing rubbing the fuel tank or seat is to restore the intended relationship among the parts. Map the contact, identify whether it is static or dynamic, verify the seat and hardware, then let the panel settle without stored tension.
Protective film or an approved anti-chafe pad can be a useful final layer at a designed interface. It should follow correct alignment, not substitute for it. When the gap depends on forced screws, altered brackets or uncertain fuel-system work, pause and get model-specific help before the paint—and the mounting tabs—pay for the shortcut.
