You replace a windscreen or mirror, put the upper cowl back together, and the motorcycle immediately develops a narrow, irritating buzz. It may appear only with road speed, only when the engine passes through part of its range, or only when the handlebars are turned slightly. The instinct is to tighten every visible screw. That is also how clear screens crack, rubber well nuts collapse and painted mounting points become permanently stressed.
A new cockpit noise is evidence of contact, movement or load introduced during the work. The useful question is not “Which bolt can I tighten?” It is “What changed, and under which condition does the sound appear?”
This guide concentrates on the windscreen, mirrors, upper cowl, inner dash panels and nearby wiring. For a broader diagnosis that covers the complete motorcycle, begin with our motorcycle fairing rattle guide. Use the service manual and parts diagram for the exact motorcycle whenever removing safety-related components or applying torque.
First, Classify the Noise by Trigger
Do not diagnose by sound alone. A plastic buzz can travel through the fairing stay and seem to come from the instrument cluster even when the contact point is near a mirror base. Record the condition that starts and stops it.
| Trigger | What it can suggest | Safe next check |
|---|---|---|
| Engine speed while stationary | A component responding to engine vibration | Inspect nearby interfaces without road testing |
| Road speed regardless of gear | Airflow loading the screen or cowl | Check screen seating, edge clearance and mirror area |
| Rough pavement only | Free play, displaced grommet or unsecured loom | Inspect hardware stacks and hidden wiring retainers |
| Steering position | Cable, hose, wire or cowl contact | Perform a slow full-lock clearance check |
| Hand pressure stops the noise while parked | A likely panel interface | Mark that interface; do not test by reaching while riding |
There is no universal RPM range that identifies fairing noise. Different engines, screens, mirrors, brackets and panels have different natural frequencies. A precise trigger on one motorcycle proves only what happens on that motorcycle.
Never use a hand to press panels while the motorcycle is moving. Reproduce only the conditions that can be tested safely and legally. If the sound is accompanied by steering resistance, brake-hose interference, an electrical fault, a loose mirror, cracked structural mounting points or contact with a moving part, stop riding until the fault is corrected.
Build a “Before and After” Change List
Write down every component disturbed during the job. A screen replacement may also involve removing mirrors, inner trim, rubber well nuts, metal collars, dash covers and wiring clips. A mirror change may alter the clamp stack at the upper cowl or fairing stay.
Record:
- the brand and application stated for the new screen or mirror;
- whether original grommets, collars and fasteners were reused;
- any hardware supplied with the new component;
- the order in which washers, spacers and rubber pieces were installed;
- whether wiring or cables were moved for access;
- any hole that required force to align;
- any tab, boss or edge that was repaired previously.
Photographs taken before disassembly are valuable here. If none exist, use the official parts diagram and service information. Do not copy the hardware arrangement from a visually similar model year.
Remove Load Before You Remove Parts
With the motorcycle stable, ignition off and components cool, inspect the screen and upper cowl in place. Look across the screen from the side. Check whether one corner is visibly drawn down farther than the others, whether the screen edge touches painted plastic, and whether the rubber mounting pieces appear evenly seated.
Then examine the mirror bases and their relationship to the cowl. Uneven gaps, a base sitting on a wire, or a missing spacer can twist the local bodywork. If the motorcycle was recently tipped over, use our mirror and upper-cowl alignment guide before assuming the screen itself is responsible.
When you begin loosening hardware, support the component and reduce tension gradually. Do not remove the final fastener while allowing a mirror or screen to hang from plastic. Keep each hardware stack labeled by location.
Inspect Windscreen Well Nuts, Grommets and Collars
Many sportbike screens use rubber well nuts or grommet-and-collar arrangements. These parts isolate vibration and limit how the fastener loads the plastic. They are not interchangeable decoration.
Inspect each piece for:
- splitting, hardening or permanent deformation;
- a brass insert that spins in the rubber;
- rubber pulled partly through the mounting hole;
- a collar missing, reversed or trapped at an angle;
- debris or paint preventing the rubber from sitting flat;
- a screw length that does not match the specified assembly;
- evidence that the fastener head has contacted the screen directly where a washer or isolator belongs.
Replace damaged pieces with the correct type and dimensions for the application. A fastener kit can be useful, but “fits many motorcycles” is not enough evidence for a critical stack. Our guide to reusing or replacing fairing fasteners explains what to compare before substituting hardware.
Do not chase a spinning well nut by applying more torque. The rubber may be damaged, the insert may have separated, or the screw may be incorrect. Remove load, inspect the assembly and replace the faulty part.
Look for Hard Contact Around the Screen Edge
A windscreen needs the clearance intended by its design. Contact between the screen edge and the painted upper cowl can create a high-frequency buzz, wear through paint or start a crack at a nearby hole. The contact may occur only after airflow deflects the screen.
Inspect the entire perimeter under bright side lighting. A narrow strip of paper can help reveal a zero-clearance point while the motorcycle is stationary, but do not use it to set a universal gap. Look for polished lines, powder, transferred color or tiny crescent marks that show repeated movement.
If the new screen touches where the original did not, verify part application, mounting orientation, hardware stack and whether all screen holes sit naturally. Do not enlarge holes or grind an edge unless the component manufacturer explicitly provides that procedure and you can perform it safely. Modification can weaken the part and may affect return or warranty options.
Check Mirror Bases Without Using Them to Pull the Cowl Into Shape
Mirror mounts can join the mirror, upper cowl and fairing stay in one loaded assembly. If the cowl holes are offset, tightening the mirror base may force the plastic sideways and create both a gap and a buzz.
With the mirror supported and the fasteners only as loose as the service procedure allows, observe whether the base and cowl settle into alignment. Confirm that locating features, spacers and sealing pieces are present. Check the metal stay for visible damage or previous repair. A bent stay cannot reliably be corrected by clamping plastic harder against it.
Aftermarket mirrors may have different base geometry even when the bolt spacing appears correct. Verify that the mounting face sits flat and that the stalk, wiring and folding mechanism clear the screen through the full steering range. A mirror must remain secure enough for a stable rear view; if the correct mounting method is uncertain, pause the project and obtain manufacturer guidance.
Inspect Inner Dash Panels and Hidden Wiring
The cockpit contains multiple light trim pieces that can transmit noise. An inner dash panel may have one clip outside its slot. A connector may rest against the back of the windscreen. A wire retainer may have been left open after the nose was removed.
Use a light and mirror or camera to inspect behind the cowl without forcing your hand into a narrow space. Confirm:
- every inner-panel tab enters its intended slot;
- wiring follows the documented route and retainers are closed;
- connectors are latched and cannot strike a hard surface;
- hoses and cables remain free throughout steering movement;
- no loose fastener or tool remains inside the nose;
- accessory wiring is fused, supported and kept away from sharp edges.
Do not pack random foam into the cockpit. Generic foam can retain water, block drainage or airflow, interfere with wiring, degrade with heat, or conceal the true misalignment. Use only a material and location approved for that application, after the mechanical cause has been identified.

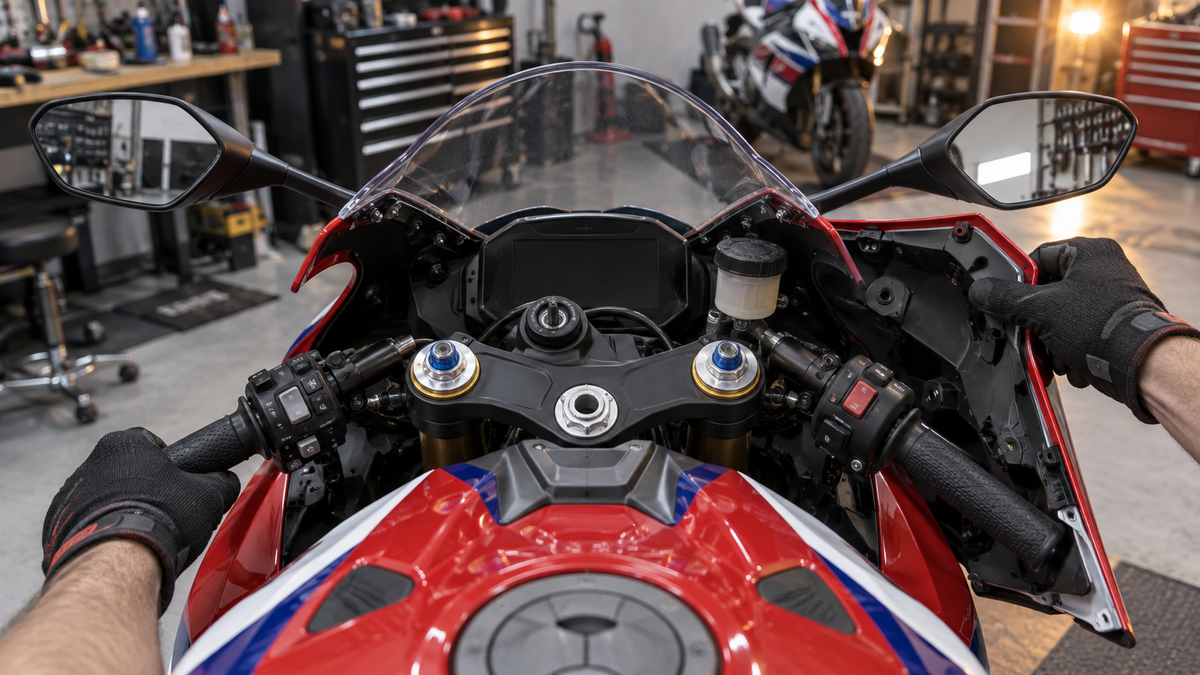

AI-generated editorial illustration of a contact-point inspection; it is not a model-specific parts or service diagram.
Use Witness Marks to Find Movement
Clean, reversible witness methods can turn an intermittent buzz into visible evidence. Apply small pieces of low-tack tape to the outside of suspected seams, clear of vents, lights and controls. On a disassembled interface, a manufacturer-safe removable marking medium may show where two surfaces touch. Test any material on an inconspicuous area first and keep it away from finished surfaces if compatibility is uncertain.
Number the locations and photograph them. After a safe stationary test or short controlled ride, inspect for shifted tape, polished spots or transferred marks. Remove all temporary material when diagnosis is complete.
Witness marks should locate movement, not restrain a loose component. Tape is never a substitute for correct hardware or a secure mirror.
Change One Variable at a Time
Reassembling the whole nose with several new parts makes it impossible to know which correction worked. Use a controlled sequence:
- Restore the documented hardware stack at one interface.
- Seat all locating tabs and grommets by hand.
- Bring neighboring panels together without using screws to pull them into place.
- Tighten only to the model- or component-specific specification.
- Repeat the same safe test condition.
- Record whether the sound changed.
If the buzz remains, move to the next evidence-supported interface. Avoid repeatedly removing painted fasteners without a plan; each cycle adds an opportunity to mark a finish or damage a clip.
Perform a Full-Lock and Control Check Before Any Road Test
A cockpit reassembly can change routing near the steering head. Turn the handlebars slowly to both locks while watching the throttle cables, brake hose, switch wiring and any accessory leads. Confirm the throttle returns normally in every position, the brake hose is not pinched, and the controls do not contact the screen or cowl.
Use our full-lock fairing and steering-clearance procedure for the complete check. Any restriction, tension or contact is a no-ride condition.
Then verify the mirrors are secure and provide a stable view, the screen is seated, the lights and indicators work, and no tools remain on the motorcycle.
Test From Lowest Risk to Highest Information
Begin with the engine off. Lightly move each panel by hand in the garage and listen for hard contact. If the motorcycle passes its static safety checks, a stationary engine test may help distinguish engine vibration from airflow, but run the motorcycle only in a ventilated area and keep away from hot and moving parts.
For a road-speed symptom, choose a short daylight route close to home. Ride conservatively and do not attempt diagnosis with your hands while moving. If the sound appears, note the road surface, speed range, wind condition and steering position, then stop safely before inspecting.
After the test, let the motorcycle cool and check the witness points. A repeatable symptom is useful. A louder symptom is not. There is no need to push speed or engine load to prove a contact problem.
When Tightening Is the Wrong Answer
Stop adding torque when:
- the screen bows between mounting points;
- the rubber isolator bulges or spins;
- a panel hole moves toward the fastener only under force;
- the mirror base does not sit flat;
- stress whitening appears around plastic;
- a fastener reaches the end of its thread before the stack is secure;
- the noise returns after repeated tightening.
These signs point to incorrect hardware, a missing spacer, a damaged isolator, wrong part application, trapped wiring, a bent stay or mis-seated panels. More clamp load may quiet the joint briefly while accelerating a crack.
Cockpit Buzz Diagnostic Checklist
- Noise trigger recorded: stationary engine vibration, road speed, bumps or steering position
- Every part changed during the windscreen or mirror job listed
- Exact model-year parts diagram and service procedure reviewed
- Windscreen application and orientation confirmed
- Well nuts, grommets, collars, washers and screw lengths verified by location
- No screen edge or mounting boss shows hard contact or stress marks
- Mirror bases sit flat with correct spacers and no trapped wire
- Upper-cowl holes align without being pulled into place
- Inner dash tabs and clips are fully seated
- Wiring and connectors are retained away from the screen and cowl
- Handlebars, throttle, brake hose and controls pass the full-lock check
- One correction tested at a time
- Temporary witness material removed after diagnosis
- Any cracked mount, bent stay or uncertain mirror attachment referred for proper repair
Quiet Comes From Correct Interfaces
A windscreen or mirror change should not require crushing rubber mounts or forcing painted panels into submission. The quiet solution usually appears when the assembly is returned to its intended stack: correct part application, correct isolators, naturally aligned holes, properly seated tabs and wiring held where the motorcycle’s design expects it.
Treat the buzz as a small mechanical investigation. Record the trigger, inspect the changed interfaces, leave evidence with reversible witness marks, and test one correction at a time. That approach protects the finish and the mounting points—and it produces a repair you can trust after the noise disappears.
